AS-289R2プリンタシールド

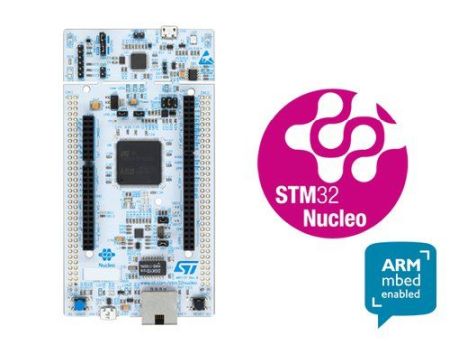

NUCLEO-F746ZG

ARM mbed - NUCLEO-F746ZG



AS-289R2のJP5をご確認ください。
ARM mbed用ライブラリ

/*
 * Thermal Printer Shield for mbed OS
 * Model:AS-289R2
 * Sample Sourcecode
 * Library : https://developer.mbed.org/components/AS-289R2-Thermal-Printer-Shield/
 * NADA ELECTRONICS, LTD.
 * http://www.nada.co.jp
 * By. Takehiro Yamaguchi
*/

#include "mbed.h"
#include "AS289R2.h"

DigitalOut led1(LED1);
AS289R2 tp(D1);

const char url[] = "https://developer.mbed.org/components/AS-289R2-Thermal-Printer-Shield/";

void AS289R2_demo()
{
    tp.initialize();
    tp.putLineFeed(2);

    /* Text Print */
    tp.printf("Thermal Printer Shield\r");
    tp.printf("Model:AS-289R2\r");
    tp.putLineFeed(4);

    tp.setANKFont(AS289R2::ANK_8x16);
    tp.printf(" 8x16: ABCDEF 012345\r");
    tp.setANKFont(AS289R2::ANK_12x24);
    tp.printf("12x24: ABCDEF 012345\r");
    tp.setANKFont(AS289R2::ANK_16x16);
    tp.printf("16x16: ABCDEF 012345\r");
    tp.setANKFont(AS289R2::ANK_24x24);
    tp.printf("24x24: ABCDEF 012345\r");
    tp.putLineFeed(4);

    tp.setANKFont(AS289R2::ANK_12x24);
    tp.printf("AS-289R2\r");
    tp.setDoubleSizeWidth();
    tp.printf("AS-289R2\r");
    tp.clearDoubleSizeWidth();
    tp.setDoubleSizeHeight();
    tp.printf("AS-289R2\r");
    tp.clearDoubleSizeHeight();
    tp.setQuadrupleSize();
    tp.printf("AS-289R2\r");
    tp.clearQuadrupleSize();
    tp.setEnlargement(3, 3);
    tp.printf("AS-289R2\r");
    tp.clearEnlargement();
    tp.putLineFeed(4);

    /* 日本語 Print */
    tp.setKanjiFont(AS289R2::KANJI_16x16);
    tp.printf("Japanese Language\r");
    tp.printf("16x16: 日本語印字\r");
    tp.setKanjiFont(AS289R2::KANJI_24x24);
    tp.printf("24x24: 日本語印字\r");
    tp.putLineFeed(4);

    /* QR code */
    tp.setANKFont(AS289R2::ANK_8x16);
    tp.printf("QR\r");
    tp.printQRCode(AS289R2::QR_ERR_LVL_M, url);
    tp.printf("\r%s\r", url);
    tp.putLineFeed(4);

    /* Barcode */
    tp.printf("Barcode UPC-A\r");
    tp.printBarCode(AS289R2::BCODE_UPC_A, "01234567890");
    tp.printf("Barcode JAN13\r");
    tp.printBarCode(AS289R2::BCODE_JAN13, "123456789012");
    tp.printf("Barcode JAN8\r");
    tp.printBarCode(AS289R2::BCODE_JAN8, "1234567");
    tp.printf("Barcode CODE39\r");
    tp.printBarCode(AS289R2::BCODE_CODE39, "123456");
    tp.printf("Barcode ITF\r");
    tp.printBarCode(AS289R2::BCODE_ITF, "01234567890123");
    tp.printf("Barcode CODABAR(NW7)\r");
    tp.printBarCode(AS289R2::BCODE_CODABAR, "A0123456789A");
    tp.putLineFeed(4);

}

// main() runs in its own thread in the OS
// (note the calls to wait below for delays)
int main()
{
    AS289R2_demo();
    while (true) {
        led1 = !led1;
        wait(0.5);
    }
}

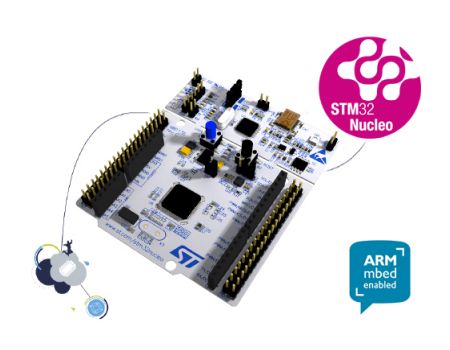

NUCLEO-F411RE

ARM mbed - NUCLEO-F411RE



AS-289R2のJP5をご確認ください。
STM32F411REジャンパー設定 : SB62 and SB63 ON. SB13 and SB14 OFF.
ARM mbed用ライブラリ

/*
 * Thermal Printer Shield for mbed 2.0(classic)
 * Model:AS-289R2
 * Sample Sourcecode
 * ARM mbed Library : https://developer.mbed.org/components/AS-289R2-Thermal-Printer-Shield/
 * NADA ELECTRONICS, LTD.
 * http://www.nada.co.jp
 * By. Takehiro Yamaguchi
*/

#include "mbed.h"
#include "AS289R2.h"

DigitalOut led1(LED1);
AS289R2 tp(D1);

const char url[] = "https://developer.mbed.org/components/AS-289R2-Thermal-Printer-Shield/";

void AS289R2_demo()
{
    tp.initialize();
    tp.putLineFeed(2);

    /* Text Print */
    tp.printf("Thermal Printer Shield\r");
    tp.printf("Model:AS-289R2\r");
    tp.putLineFeed(4);

    tp.setANKFont(AS289R2::ANK_8x16);
    tp.printf(" 8x16: ABCDEF 012345\r");
    tp.setANKFont(AS289R2::ANK_12x24);
    tp.printf("12x24: ABCDEF 012345\r");
    tp.setANKFont(AS289R2::ANK_16x16);
    tp.printf("16x16: ABCDEF 012345\r");
    tp.setANKFont(AS289R2::ANK_24x24);
    tp.printf("24x24: ABCDEF 012345\r");
    tp.putLineFeed(4);

    tp.setANKFont(AS289R2::ANK_12x24);
    tp.printf("AS-289R2\r");
    tp.setDoubleSizeWidth();
    tp.printf("AS-289R2\r");
    tp.clearDoubleSizeWidth();
    tp.setDoubleSizeHeight();
    tp.printf("AS-289R2\r");
    tp.clearDoubleSizeHeight();
    tp.putLineFeed(4);

    /* 日本語 Print */
    tp.setKanjiFont(AS289R2::KANJI_16x16);
    tp.printf("Japanese Language\r");
    tp.printf("16x16: 日本語印字\r");
    tp.setKanjiFont(AS289R2::KANJI_24x24);
    tp.printf("24x24: 日本語印字\r");
    tp.putLineFeed(4);

    /* QR code */
    tp.setANKFont(AS289R2::ANK_8x16);
    tp.printf("QR\r");
    tp.printQRCode(AS289R2::QR_ERR_LVL_M, url);
    tp.printf("\r%s\r", url);
    tp.putLineFeed(4);

    /* Barcode */
    tp.printf("Barcode UPC-A\r");
    tp.printBarCode(AS289R2::BCODE_UPC_A, "01234567890");
    tp.printf("Barcode JAN13\r");
    tp.printBarCode(AS289R2::BCODE_JAN13, "123456789012");
    tp.printf("Barcode JAN8\r");
    tp.printBarCode(AS289R2::BCODE_JAN8, "1234567");
    tp.printf("Barcode CODE39\r");
    tp.printBarCode(AS289R2::BCODE_CODE39, "123456");
    tp.printf("Barcode ITF\r");
    tp.printBarCode(AS289R2::BCODE_ITF, "01234567890123");
    tp.printf("Barcode CODABAR(NW7)\r");
    tp.printBarCode(AS289R2::BCODE_CODABAR, "A0123456789A");
    tp.putLineFeed(4);
 }

int main()
{
    AS289R2_demo();
    while (true) {
        led1 = !led1;
        wait(0.5);
    }
}

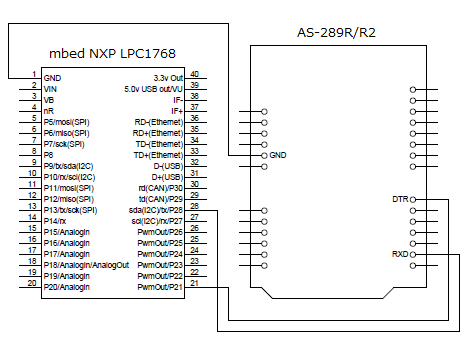

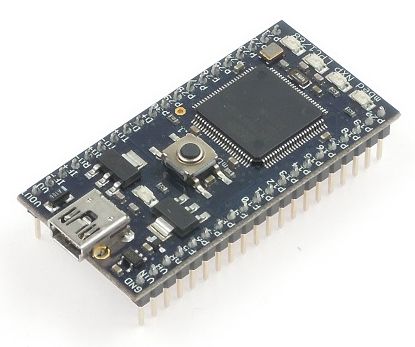

NXP LPC1768

ARM mbed - NXP LPC1768



AS-289R2のJP5をご確認ください。

/*
 * Thermal Printer Shield for mbed 2.0(classic)
 * Model:AS-289R2
 * Sample Sourcecode
 * NADA ELECTRONICS, LTD.
 * http://www.nada.co.jp
 * By. Takehiro Yamaguchi
*/

#include "mbed.h"

Serial device(p28, NC);  // tx(p28)

int main()
{
  while(1) {
    /* Text Print */
    device.printf("Thermal Printer Shield\r");
    device.printf("Text Printing.\r");
    device.printf("\r\r");		// Line Feed x 2
    /* QRcode Print */
    char GsQr[] = { 0x1D,0x78,0x4C,0x04,0x54,0x45,0x53,0x54 };
    for (int i = 0; i < sizeof(GsQr); i++) {
      device.putc(GsQr[i]);
    }
    device.printf("\r\r\r\r\r\r");  	// Line Feed x 6
    /* Wait */
    wait(5.0);  // 5Sec
  }
}
