AS-289R2プリンタシールド

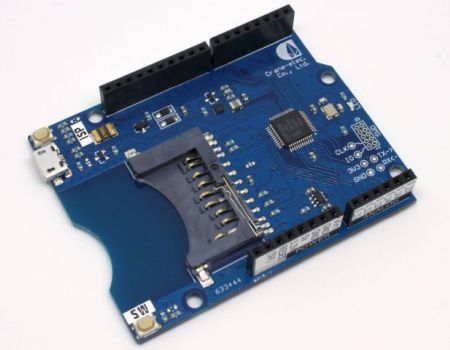

Airio-Base

クレイン電子



AS-289R2のJP5をご確認ください。

/*
 * Thermal Printer Shield for Mbed 2.0(classic)
 * Model:AS-289R2
 * Sample Sourcecode
 * Mbed Library : https://developer.mbed.org/components/AS-289R2-Thermal-Printer-Shield/
 * NADA ELECTRONICS, LTD.
 * http://www.nada.co.jp
 * By. Takehiro Yamaguchi
*/

#include "mbed.h"
#include "AS289R2.h"

AS289R2 tp(P0_19);
DigitalOut myled(LED1);

void AS289R2_demo()
{
    /* initialize */
    tp.initialize();

    tp.putLineFeed(2);

    /* Print Text Message */
    tp.printf("Thermal Printer Shield\r");
    tp.printf("Model:AS-289R2\r");

    tp.putLineFeed(2);

    /* Change ANK Font size */
    tp.setANKFont(AS289R2::ANK_8x16);
    tp.printf("Font8x16\rABCDEF012345アイウエオ\r\r");
    tp.setANKFont(AS289R2::ANK_16x16);
    tp.printf("Font16x16\rABCDEF012345アイウエオ\r\r");
    tp.setANKFont(AS289R2::ANK_12x24);
    tp.printf("Font12x24\rABCDEF012345アイウエオ\r\r");
    tp.setANKFont(AS289R2::ANK_24x24);
    tp.printf("Font24x24\rABCDEF012345アイウエオ\r\r");

    tp.putLineFeed(2);

    /* Change font width and height */
    tp.setANKFont(AS289R2::ANK_12x24);
    tp.printf("AS-289R2\r");
    tp.setDoubleSizeWidth();
    tp.printf("AS-289R2\r");
    tp.clearDoubleSizeWidth();
    tp.setDoubleSizeHeight();
    tp.printf("AS-289R2\r");
    tp.clearDoubleSizeHeight();
    tp.setQuadrupleSize();
    tp.printf("AS-289R2\r");
    tp.clearQuadrupleSize();
    tp.setEnlargement(3, 3);
    tp.printf("AS-289R2\r");
    tp.clearEnlargement();

    tp.putLineFeed(2);

    /* Print KANJI HIRAGANA KATAKANA */
    tp.setANKFont(AS289R2::ANK_8x16);
    tp.setKanjiFont(AS289R2::KANJI_16x16);
    tp.printf("Japanese\r");
    tp.printf("16x16: 漢字ひらがなカタカナ\r");
    tp.setANKFont(AS289R2::ANK_12x24);
    tp.setKanjiFont(AS289R2::KANJI_24x24);
    tp.printf("24x24: 漢字ひらがなカタカナ\r");

    tp.putLineFeed(2);

    /* Barcode */
    tp.printf("Barcode UPC-A\r");
    tp.printBarCode(AS289R2::BCODE_UPC_A, "12345678901");
    tp.printf("Barcode JAN13\r");
    tp.printBarCode(AS289R2::BCODE_JAN13, "123456789012");
    tp.printf("Barcode JAN8\r");
    tp.printBarCode(AS289R2::BCODE_JAN8, "1234567");
    tp.printf("Barcode CODE39\r");
    tp.printBarCode(AS289R2::BCODE_CODE39, "123456");
    tp.printf("Barcode ITF\r");
    tp.printBarCode(AS289R2::BCODE_ITF, "01234567890123");
    tp.printf("Barcode CODABAR(NW7)\r");
    tp.printBarCode(AS289R2::BCODE_CODABAR, "A0123456789A");

    tp.putLineFeed(2);

    /* Barcode height */
    tp.printf("Barcode height\r");
    tp.setBarCodeHeight(10);
    tp.printBarCode(AS289R2::BCODE_JAN13, "123456789012");
    tp.setBarCodeHeight(20);
    tp.printBarCode(AS289R2::BCODE_JAN13, "123456789012");
    tp.setBarCodeHeight(30);
    tp.printBarCode(AS289R2::BCODE_JAN13, "123456789012");
    tp.defaultBarCodeHeight();
    tp.printBarCode(AS289R2::BCODE_JAN13, "123456789012");

    tp.putLineFeed(2);

    /* Barcode-bar size */
    tp.printf("Barcode bar size\r");
    tp.setBarCodeBarSize(3,5);
    tp.printBarCode(AS289R2::BCODE_JAN13, "123456789012");
    tp.defaultBarCodeBarSize();
    tp.printBarCode(AS289R2::BCODE_JAN13, "123456789012");

    tp.putLineFeed(2);

    /* QR code */
    char url[] = "https://developer.mbed.org/components/AS-289R2-Thermal-Printer-Shield/";
    tp.printQRCode(AS289R2::QR_ERR_LVL_M, url);
    tp.printf("\r");
    //tp.printf(url);

    tp.putLineFeed(2);

    /* Print Direction */
    tp.setPrintDirection(1);    // Prints from the bottom
    tp.printf("test\r");
    tp.setPrintDirection(0);    // Prints from the top
    tp.printf("test\r");

    tp.putLineFeed(2);

    /* Inter-Character Spacing */
    tp.setInterCharacterSpace(0);
    tp.printf("test\r");
    tp.setInterCharacterSpace(3);
    tp.printf("test\r");
    tp.setInterCharacterSpace(6);
    tp.printf("test\r");
    tp.setInterCharacterSpace(9);
    tp.printf("test\r");
    tp.defaultInterCharacterSpace();

    tp.putLineFeed(2);

    /* Line and Character Spacing */
    tp.setLineSpaceing(0);
    tp.printf("test\r");
    tp.setLineSpaceing(5);
    tp.printf("test\r");
    tp.setLineSpaceing(10);
    tp.printf("test\r");
    tp.setLineSpaceing(15);
    tp.printf("test\r");
    tp.defaultLineSpaceing();

    tp.putLineFeed(2);

    /* Print Position */
    tp.putPrintPosition(10);
    tp.printf("test\r");
    tp.putPrintPosition(15);
    tp.printf("test\r");
    tp.putPrintPosition(20);
    tp.printf("test\r");

    tp.putLineFeed(2);

    /* Superscript */
    tp.printf("1cm");
    tp.setScript(AS289R2::SCRIPT_SUPER);
    tp.printf("3");
    tp.printf("\r");
    tp.setScript(AS289R2::SCRIPT_CANCEL);

    /* Subscript */
    tp.printf("H");
    tp.setScript(AS289R2::SCRIPT_SUB);
    tp.printf("2");
    tp.setScript(AS289R2::SCRIPT_CANCEL);
    tp.printf("O\r");

    /* PaperFeed */
    tp.putPaperFeed(200);
}

int main()
{
    AS289R2_demo();
    while(1) {
        myled = 1;
        wait(0.2);
        myled = 0;
        wait(0.2);
    }
}
